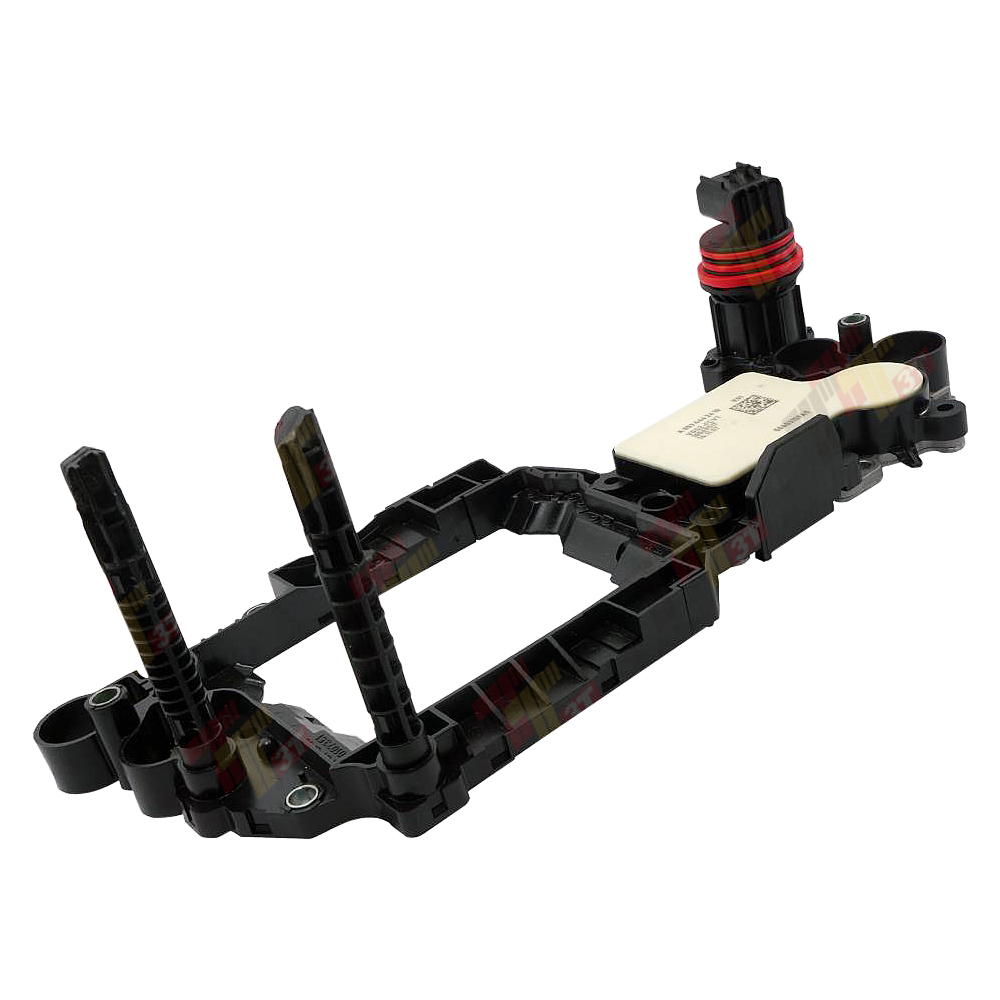

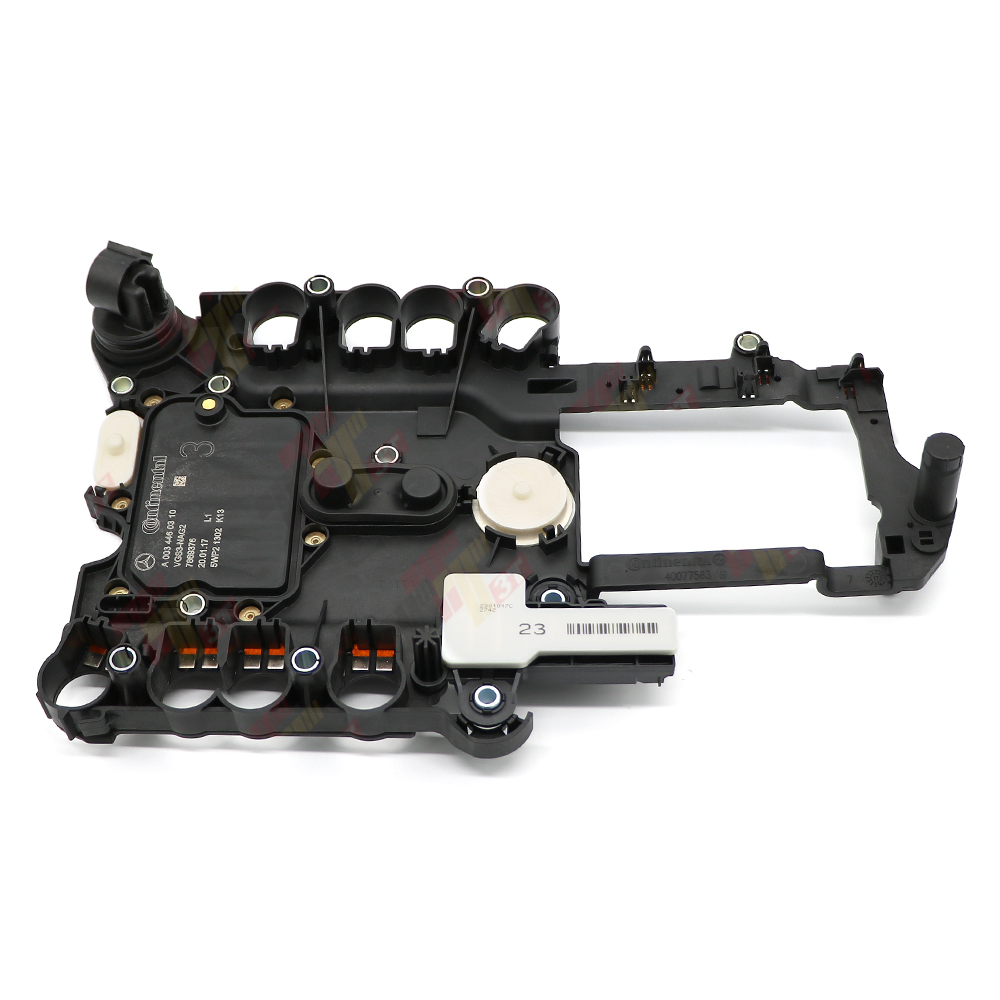

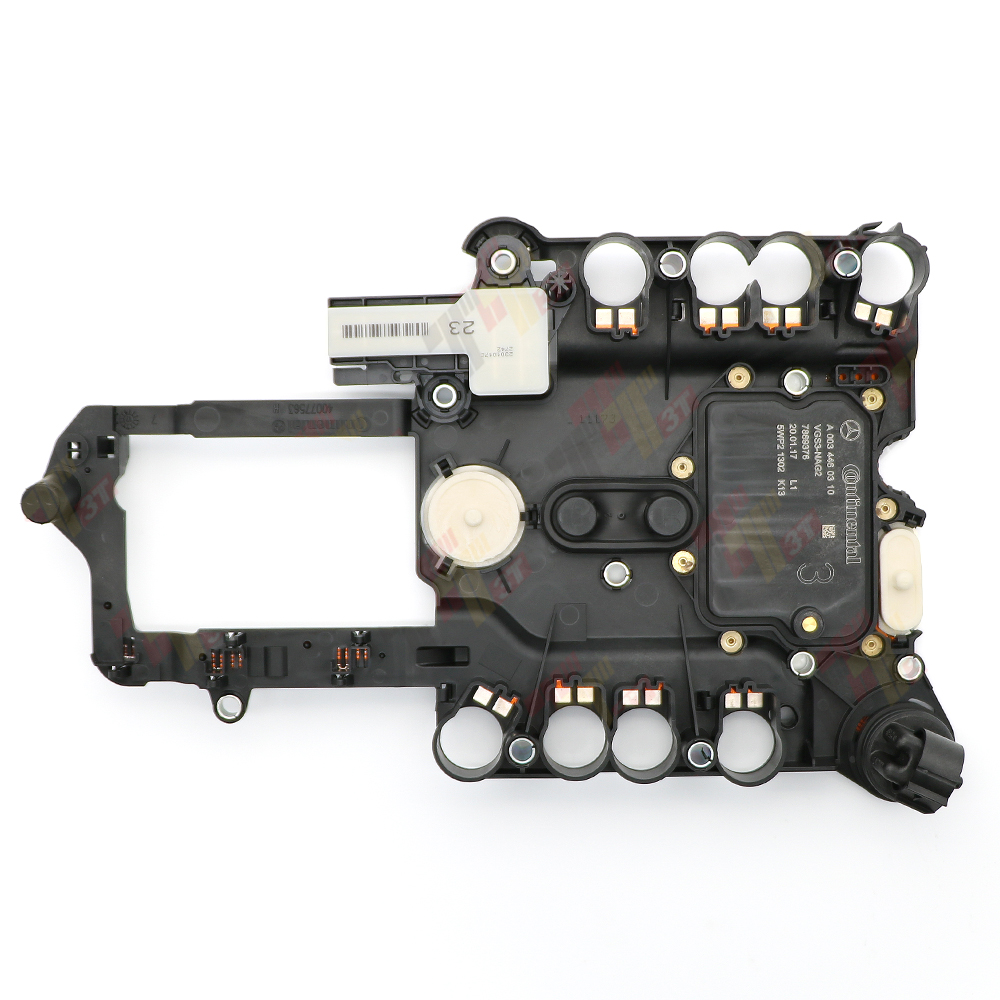

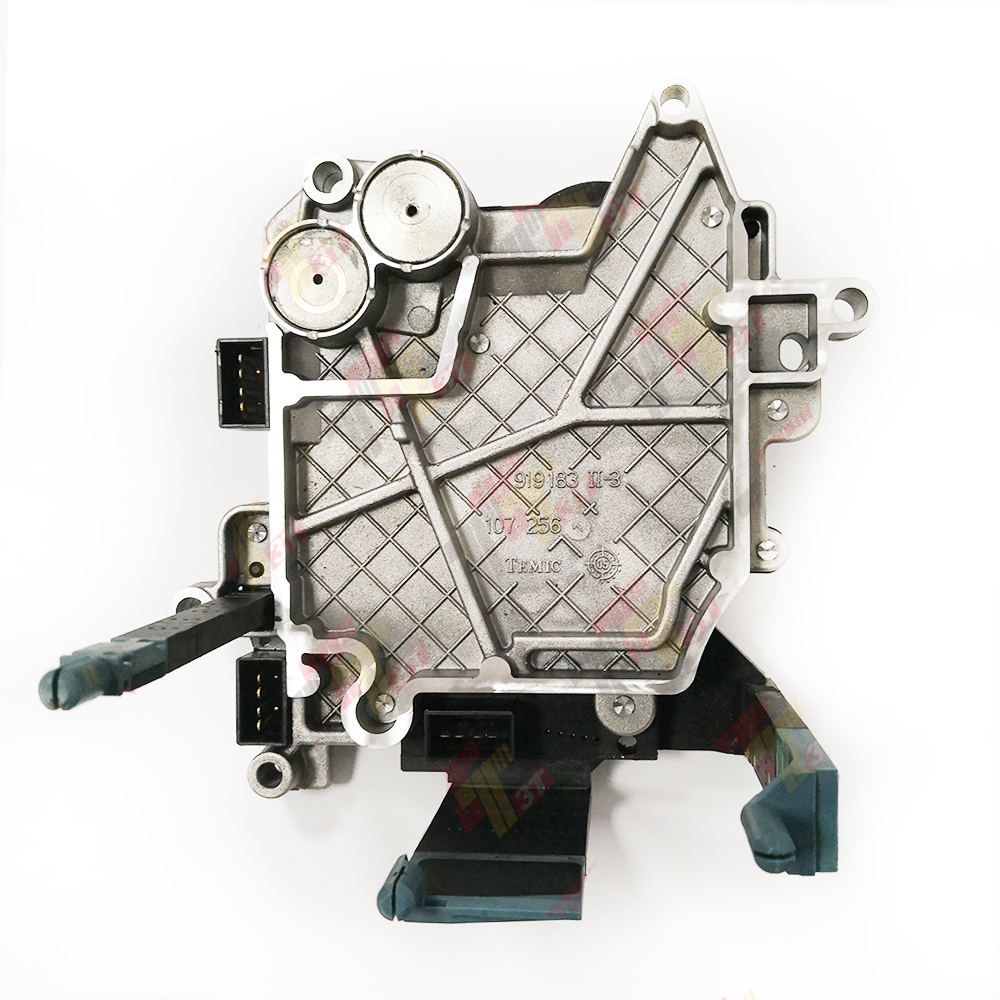

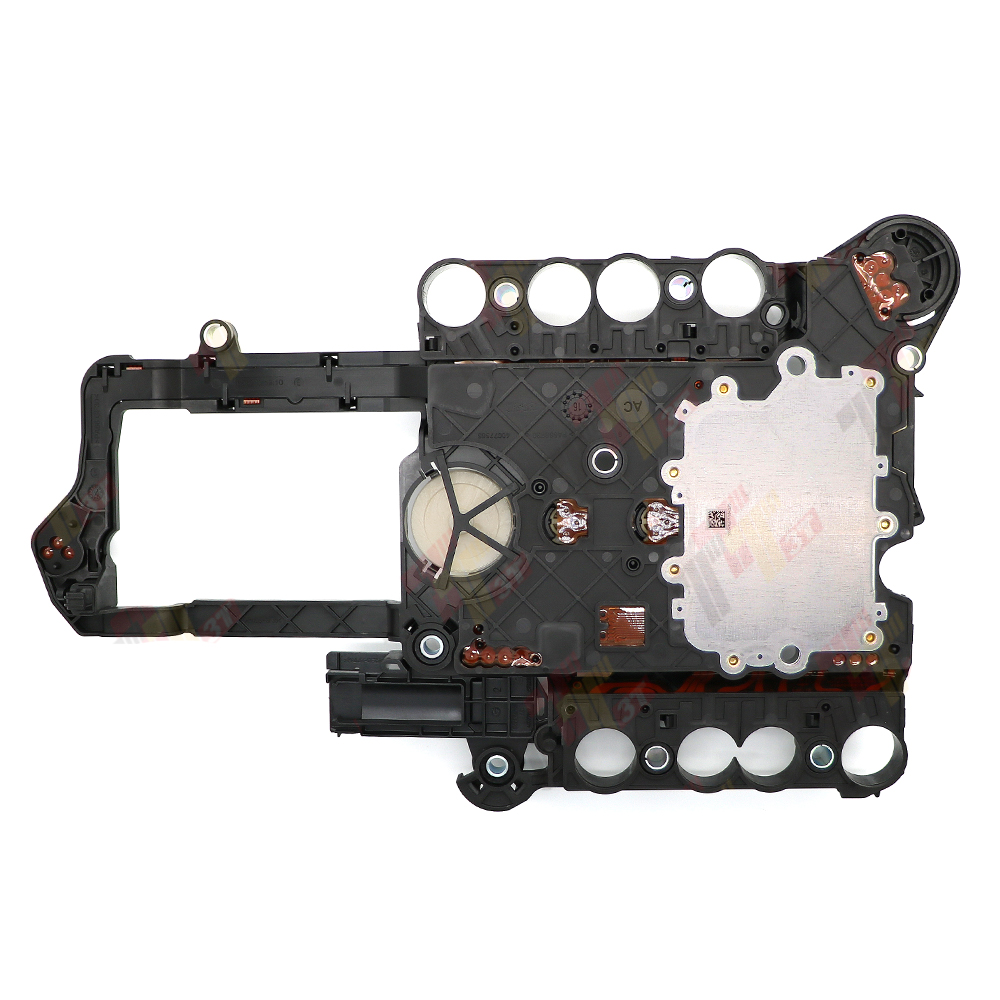

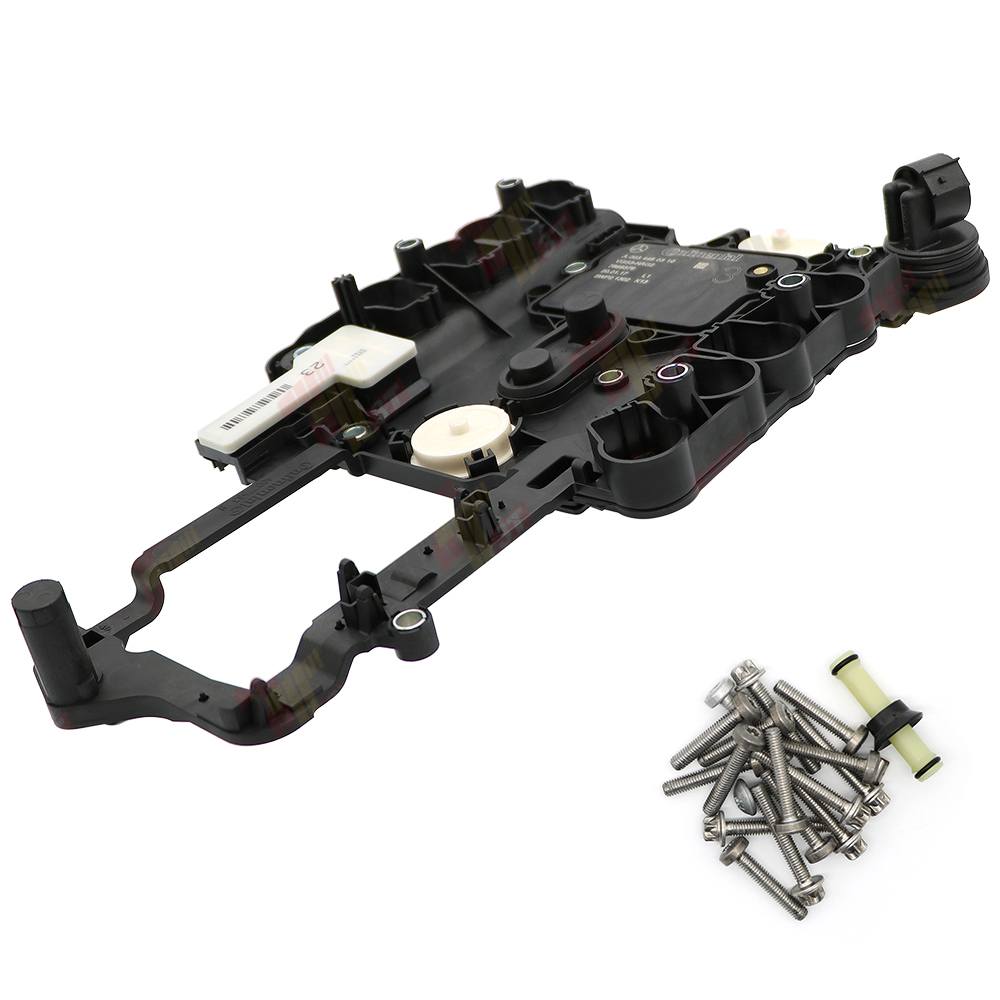

For Mercedes Benz 7G 722.9 TCU ECU Conductor plate Control Module with program

Important Tips:

1.This TCU ECU Conductor Plate requires professional ECU repair knowledge, we don't suggest personal installation or repair store which has no experience buy it.

2.It is brand new with no program inside, if you need program, please tell us your car VIN# before or after purchase!

3.Damaged caused by faulty installation, repair or maintenance work under non-qualified personnel, unauthorized modification are not in our guarantee range!

Mercedes Benz W221 S300 S350 S500 S550 S600

CC/CLK/CLS/CL/R/S/SLK/SPRINTER Class/Vito/Viano

（except for Benz A/B class, all other Benz car use this TCU)

 Why price is higher? This item is brand new not refurbished or second hand one!

Error codes:

0641 Component Y3/8n4 (Fully integrated transmission control (VGS) control unit) is defective

0642 The voltage supply of the speed sensors is faulty. (Undervoltage)

0705 Component Y3/8s1 (Selection range sensor (VGS)) is defective

0706 Check component Y3/8s1 (Selection range sensor (VGS))

0717 The signal from component Y3/8n1 (Turbine speed sensor (VGS)) is not available

0718 Component Y3/8n1 (Turbine speed sensor (VGS)) is defective

0722 The signal from component Y3/8n3 (Output speed sensor (VGS)) is not available

0723 Component Y3/8n3 (Output speed sensor (VGS)) is defective

0748 The internal electrical check of component Y3/8y2 (K1 clutch control solenoid valve (VGS)) has failed

0778 The internal electrical check of component Y3/8y5 (B1 brake control solenoid valve (VGS)) has failed

0798 The internal electrical check of component Y3/8y7 (B3 brake control solenoid valve (VGS)) has failed

2216 Check component Y3/8s1 (Selection range sensor (VGS)) The adaptation sequence occurred outside the valid range

2716 The internal electrical check of component Y3/8y4 (K3 clutch control solenoid valve (VGS)) has failed

2725 The internal electrical check of component Y3/8y6 (B2 brake control solenoid valve (VGS)) has failed

2734 The internal electrical check of component Y3/8y3 (K2 clutch control solenoid valve (VGS)) has failed

2759 The internal electrical check of component Y3/8y8 (Torque converter lockup clutch control solenoid valve (VGS)) has failed

2766 Excessive rpms have occurred at component Y3/8n2 (Internal speed sensor (VGS))

2767 The signal from component Y3/8n2 (Internal speed sensor (VGS)) is not available

2768 Component Y3/8n2 (Internal speed sensor (VGS)) is defective

2810 The internal electrical check of component Y3/8y1 (Working pressure control solenoid valve (VGS)) has failed

More Diagnostic Error Codes:

0604, 0605, 0607, 060A, 060C, 0613, 061B, 062F, 0633, 0641,

0651, 06A3, 0701, 0711, C300, 1610, 1629, 1631, 1632, 1633, 1634,

1636, 1638, 1639, 1693, 1710, 1711, 1712 etc.

Please tell us your car VIN number so that we can program it for you, otherwise there is no program inside!

Please tell us your car model and year information to check for you if you are not sure whether it is compatible, thanks.
